1805 ER

Earth resistance meter

  • Weight g: 1

(State Register)

Inquire Now


1805 ER of grounding 0.2 – 1000 Ohm, test signal 2 mA / 820 Hz; U step 1 – 30 V / 40 – 500 Hz, switch, battery power, weight 1.05 kg

Nom. number 539119029
Manufacturer/td> Standart Electric Works
Weight g 1

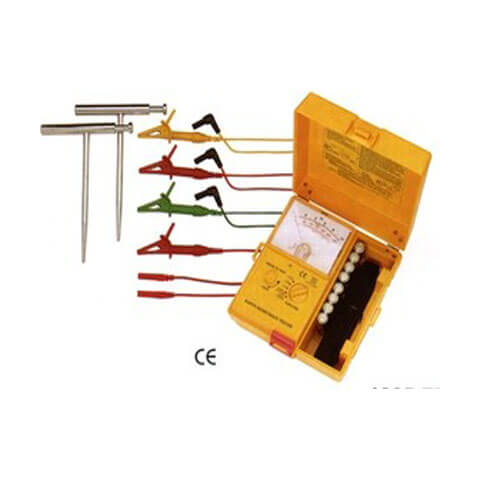

3 Wire Analog Earth Resistance Tester with high quality Taut Band movement.
Capable of measuring earth resistance and earth voltage.
Earth resistance measuring ranges: 0-10Ω / 0-100Ω / 0-1000Ω.
Earth voltage measuring ranges: 0-30 Vac (40-500Hz).

Measuring ranges Earth resistance:
0-10Ω / 0-100Ω / 0-1000Ω
Earth voltage 0-30 Vac (40-500Hz)
Accuracy Earth resistance ±3% of full scale
Earth voltage ±2.5% of full scale
Measuring system Earth resistance by constant current
inverter 820Hz, 2mA approx.
Open circuit
indication LED will be unlit
Dimensions 170(L) × 165(W) × 92(D)mm
(battery included) Approx. 1000g
Power source 1.5V (AA) × 8
Safety standards EN 61010-1 CAT III 150V
EN 61326-1
