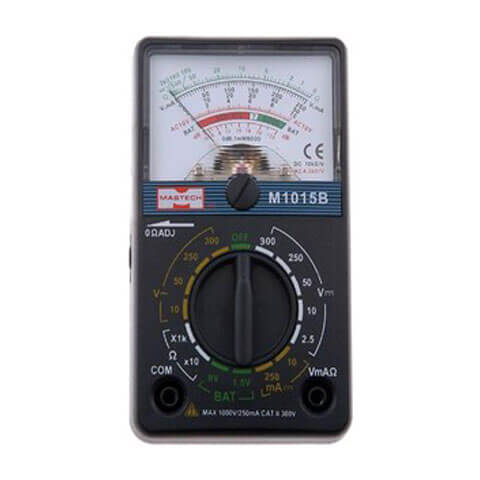

M1015B
Dial multimeter
- Selection of measurement limits: manualr
- Indicator type: analog
- Auxiliary indicator: not
- Linear scale: not
- DC voltage measurement: there is
- DC voltage measuring ranges: 2.5-10-50-250-300v
- AC voltage measurement: there is
Inquire Now
Description
An analog multimeter for measuring current, voltage and resistance. Additionally, the device allows you to test batteries and measure the level of dB. Corresponds to CAT II 300 V.
Main characteristics:
Selection of measurement limits: manual
Indicator type: analog
Ranges of measurement of a direct voltage: 2.5 – 10 – 50 – 250 -300 V
Ranges of measurement of an alternating voltage: 10 – 50 – 250 – 300 V
Ranges of measurement of a direct current : 10 mA – 250 mA
Resistance measurement ranges: 20 kOhm – 2 MΩ
Dimensions, mm: 116 x 68 x 35
Weight, g: 195
| Nom. number | 385735380 |
| Manufacturer | Precision Mastech Enterprises |
| Selection of measurement limits | manual |
| Indicator type | analog |
| Auxiliary indicator | not |
| Linear scale | not |
| DC voltage measurement | there is |
| DC voltage measuring ranges | 2.5-10-50-250-300v |
| AC voltage measurement | there is |
| AC voltage measurement ranges | 10-50-250-300v |
| Direct current measurement | there is |
| Ranges of measurement of a direct current | 10mA-250mA |
| AC measurement | not |
| Resistance measurement | there is |
| Resistance Measurement Ranges | 20kom-2mom |
| Capacitance measurement | not |
| Inductance Measurement | not |
| Power measurement | not |
| Frequency measurement | not |
| Temperature measurement | not |
| Logic probe | not |
| Diode and Transistor Test | not |
| Conductivity circuit | not |
| Revolution counter | not |
| Memory of previous values | not |
| Display Hold | not |
| Overload protection | not |
| RS232 port | not |
| Auto shut off | not |
| Sizes, mm | Sizes, mm116x68x35 |
| Weight g | 195 |
