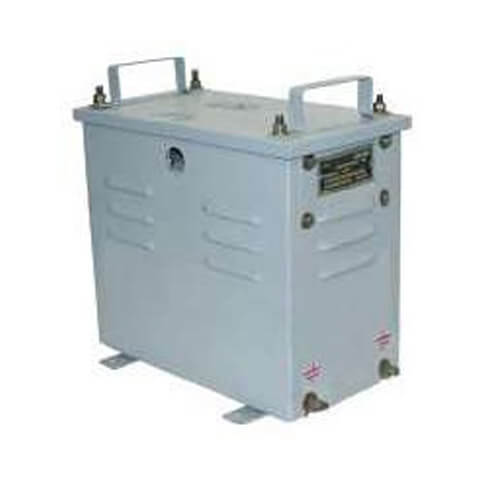

42-24 ETZ Kaluga
Transformer TSZI-1.6-380-220
- Height: 300 mm
- Depth: 310 mm
- Width: 212 mm
- Rated power: 1600 A
- IP degree of protection: ip20
- Secondary voltage 1 to: 42 V
- Secondary voltage 1 s: 42 V
- Relative short circuit voltage Uk: 5.5%
- Primary voltage 1 to: 380 in
- Primary voltage 1 s: 380 in
- Type of connection scheme: Other
- Secondary voltage 2 to: 24 in
- Secondary voltage 2 s: 24 in
Inquire Now
Description
42-24 ETZ Kaluga, Three-phase power transformer low-voltage
| Nom. number | 8000847555 |
| Manufacturer | Electrotechnical Plant Kaluga |
| Height | 300 mm |
| Depth | 310 mm |
| Width | 212 mm |
| Rated power | 1600 VA |
| IP degree of protection | ip20 |
| Secondary voltage 1 to | 42 V |
| Secondary voltage 1 s | 42 V |
| Relative short circuit voltage Uk | 5.5% |
| Primary voltage 1 to | 380 in |
| Primary voltage 1 s | 380 in |
| Type of connection scheme | Other |
| Secondary voltage 2 to | 24 in |
| Secondary voltage 2 s | 24 in |
-
PURPOSE of 42-24 ETZ Kaluga
Step-down transformers TSZI (three-phase) of the trademark Electrotechnical Plant LLC Kaluga are designed to convert an alternating voltage of one magnitude 380 / 220V to a voltage of another magnitude 110; 42; 36; 24; 12V.
-
FIELD OF APPLICATION
They are used to power control circuits of local lighting and signaling complex circuits in order to increase the reliability of electrical apparatus and ensure safer maintenance of electrical equipment. Winding connection groups 0; 11. IP20-IP23. 42-24 ETZ Kaluga
-
PRINCIPLE OF ACTION
When connected to a source, alternating current creates an alternating magnetic flux, which, closing along the core, penetrates the turns of both the primary and secondary windings of the transformer, inducing EMF in them. When connecting the secondary windings to the load, an alternating current will occur under the influence of EMF. Thus, electrical energy is transferred from the primary circuit of the transformer to the secondary.
-
ADDITIONAL ACCESSORIES OR ACCESSORIES
At the request of the customer, transformer windings can be made of aluminum winding wires.
Three-phase power transformer low-voltage
