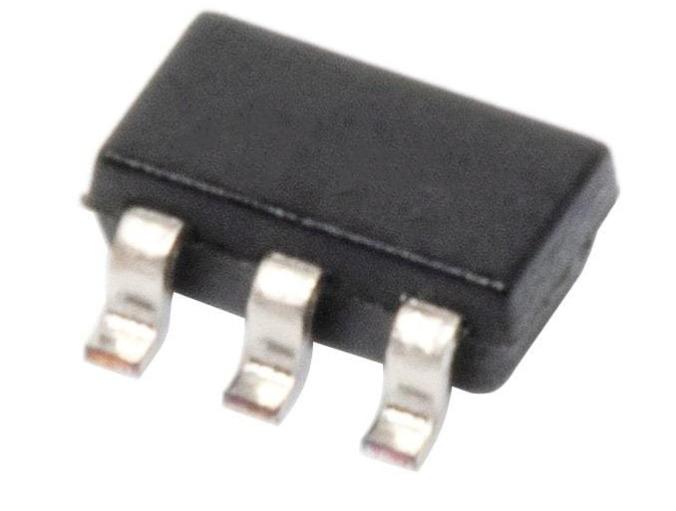

ADI AD8601ARTZ

Megatronicka #: AD8601ARTZ

Mfr. #: AD8601ARTZ

Manufacturer: ADI

Client #:

AD8601ARTZ is a precision amplifier designed for high performance, ultra-low power consumption, and to provide superior distortion performance.

Datasheet: AD8601ARTZ-REEL7 Datasheet (PDF)

ADI AD8601ARTZ specs

Product attribute: Attribute value: Select attribute

Manufacturer: ADI

Product Category: Precision Amplifiers

RoHS: Details

Series: AD8601

Number of channels: 1 channel

GBP – Bandwidth Gain Product: 8.4 MHz

Response rate (SR): 6 V/us

Common Mode Reverse Roll 89 dB for rejection ratio

50 mA is the output current per channel.

Ib – Input Bias Current: 1 nA

Vos – Input Offset Voltage: 80 UV

en – Input Voltage Noise Density: 33 nV/sqrt Hz

Supply voltage – Max: 5.5 V

Supply voltage – Min: 2.7 V

Operating supply current: 750 uA

Minimum operating temperature: – 40 C

Maximum operating temperature: + 125 C

Shutdown: No Shutdown

Mounting Style: SMD/SMT

Package/Case: SOT-23-5

Packaging: Reel

Packaging: cut tape

Packaging: Mouse Reel

Brand: ADI

Height: 1.15mm

Input Voltage Range – Max: 5V

Length: 2.9mm

Operating supply voltage ranges from 2.7 to 5.5 volts

Outlet Type: Rail to Rail

Product: Precision amplifiers

Product Type: Precision Amplifiers

PSRR – Power Supply Rejection Ratio: 80 dB

3000

Subcategory: Amplifier ICS

Type: General Purpose Amplifier

dB Voltage Gain: 98.06 dB

Width: 1.6mm

Unit Weight: 0.000222 ounces
