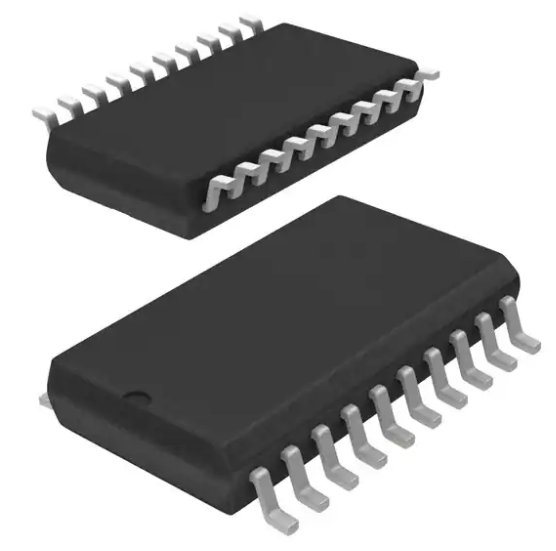

ADI ADM2582EBRWZ Chips

Megatronicka #: ADM2582EBRWZ

Mfr. #: ADM2582EBRWZ

Manufacturer: ADI

Client #:

This ADM2582E is a unidirectional digital isolator with three channels of 16 Mb/s. It is designed for high-performance applications such as data transmission and storage. The chip features a 2500V isolation voltage and a surface mount package size of SOIC-20.

Datasheet: ADM2582EBRWZ Datasheet (PDF)

Product attribute: Attribute value: Select attribute

Manufacturer: ADI

Product Category: Digital Isolators

RoHS: Details

Series: ADM2582E

Mounting Style: SMD/SMT

Package/Case: SOIC-20

Number of channels: 3 channels

Polarity: Unidirectional

Data rate: 16 Mb/s

Isolation voltage: 2500 Vrms

Insulation Type: Magnetic Coupling

Supply voltage – Max: 5.5 V

Supply voltage – Min.: 3 V

Operating supply current: 230 mA

Propagation delay time: 100 ns

Minimum operating temperature: – 40 C

Maximum operating temperature: + 85 C

Packaging: Tube

Brand: ADI

Moisture Sensitive: Yes

Operating supply voltage: 5 V

Product Type: Digital Isolators

Supported protocol: RS-485

Shutdown: No Shutdown

D/C 22+

QTY 5000

Subcategory: ICS interface

Supply Type: Single

Type: RS-485 Isolated Transceiver

Unit Weight: 0.028254 ounces
