RS-485 Transceiver

    • Interchange Technology: magnetic coupling
    • Number of channels: 3
    • Channel configuration (forward / reverse): 2/1
    • Polarity: unidirectional
    • Insulation voltage: 2500vrms
    • Data rate: 16mbps
    • Supply voltage: 3.3, 5

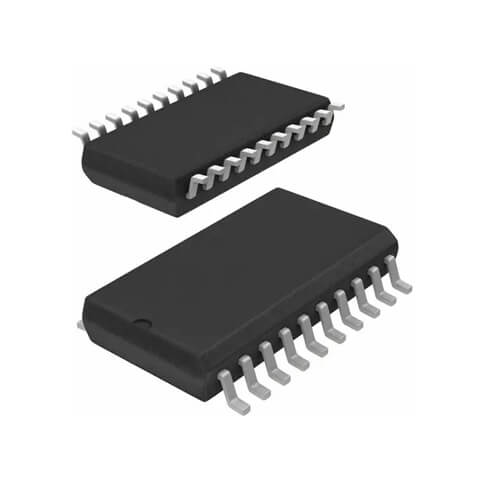

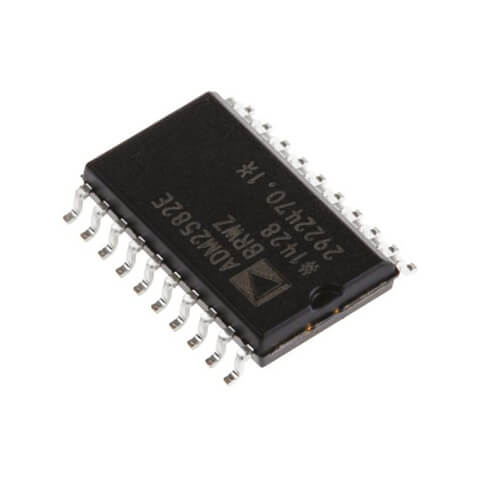

RS-485 Transceiver (16Mbps), Power and Signal Isolation 2.5 kV [SO-20W]

Inquire Now



So the ADM2582EBRWZ ADM2582E/ADM2587E are fully integrated signal and power isolated data transceivers with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines. Moreover the ADM2582E/ADM2587E include an integrated isolated dc-to-dc power supply, which eliminates the need for an external dc-to-dc isolation block.

So they are designed for balanced transmission lines and comply
with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E).

Nom. number 9000090696
A type rs422, rs485
Interchange Technology magnetic coupling
Number of channels 3
Channel configuration (forward / reverse) 2/1
Polarity unidirectional
Insulation voltage 2500vrms
Data rate 16mbps
Supply voltage 3.3, 5
Working temperature ° C -40 … + 85
Body soic-16 (0.295 inch)
Weight g 0.9
Manufacturer Analog Devices

What’s more?

So the ADM2582E/ADM2587E driver has an active high enable.
Therefore an active low receiver enable is also provided, which causes the receiver output to enter a high impedance state when disabled.
In addition to this the devices have current limiting and thermal shutdown features to protect against output short circuits and situations where bus contention may cause excessive power dissipation.
Moreover the parts are fully specified over the industrial temperature
range and are available in a highly integrated, 20-lead, wide-body
SOIC package. Get ADM2582EBRWZ now.
