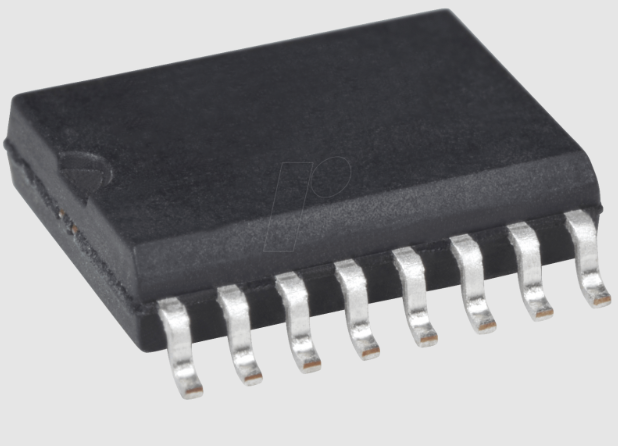

ADI ADM2682EBRIZ Chips

Megatronicka #: ADM2682EBRIZ

Mfr. #: ADM2682EBRIZ

Manufacturer: ADI

Client #:

The ADM2682EBRIZ 8-bit, RS-422/RS-485 interface IC is an integrated chip that implements the standards of using one transmit and one receive port. These integrated circuits are used in RS-422/RS-485 communications devices and industrial computers to establish a point-to-point electrical connection between two peripheral devices.

Datasheet:  ADM2682EBRIZ Datasheet (PDF)

Product attribute: Attribute value: Select attribute

Manufacturer: ADI

Product category: RS-422/RS-485 interface IC

RoHS: Details

Series: ADM2682E

Mounting Style: SMD/SMT

Package/Case: SOIC-16

Function: Transceiver

Number of conductors: 1 conductor

Number of receivers: 1 receiver

Data rate: 16 Mb/s

Supply voltage – Max: 5.5 V

Supply voltage – Min.: 3 V

Minimum operating temperature: – 40 C

Maximum operating temperature: + 85 C

Packaging: Tube

Brand: ADI

Development Kit: EVAL-ADM2682EEBZ

Number of channels: 1 channel

Operating supply voltage: 3.3V, 5V

Product type: RS-422/RS-485 interface IC

QTY: 21+ 5000

Subcategory: Interface ICS

Type: RS-485 Isolated Transceiver

Unit Weight: 0.023492 ounces
