ADM3202ARNZ ADI Devices

ADI ADM3202ARNZ Chips Megatronicka #: ADM3202ARNZ Mfr. #: ADM3202ARNZ Manufacturer: ADI Client #: ADM3202ARNZ is an RS-232 interface IC that uses a 2-transceiver bus to achieve 460kb/s data rates. It has two receivers and two transmitters on the top layer of the PCB with three layers of vias between them. Datasheet:  ADM3202ARNZ Datasheet (PDF) Product attribute: […]


Inquire Now

Description

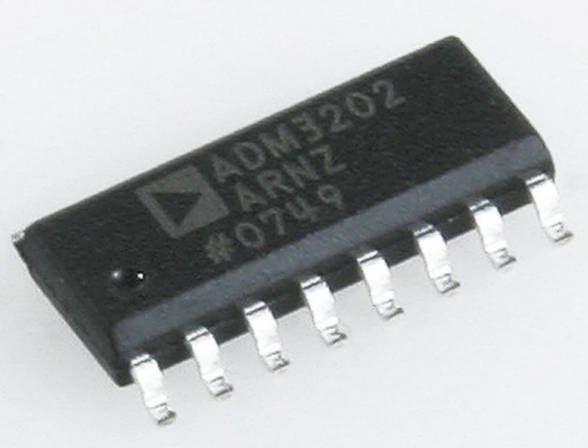

ADI ADM3202ARNZ Chips

Megatronicka #: ADM3202ARNZ

Mfr. #: ADM3202ARNZ

Manufacturer: ADI

Client #:

ADM3202ARNZ is an RS-232 interface IC that uses a 2-transceiver bus to achieve 460kb/s data rates. It has two receivers and two transmitters on the top layer of the PCB with three layers of vias between them.

Datasheet:  ADM3202ARNZ Datasheet (PDF)

Product attribute: Attribute value: Select attribute

Manufacturer: ADI

Product category: RS-232 interface IC

RoHS: Details

Mounting Style: SMD/SMT

Package/Case: SOIC-16

Series: ADM3202

Function: Transceiver

Data rate: 460kb/s

Number of conductors: 2 conductors

Number of receivers: 2 receivers

Duplex: Full Duplex

Supply voltage – Max: 5.5 V

Supply voltage – Min.: 3 V

Operating supply current: 3 mA

Minimum operating temperature: – 40 C

Maximum operating temperature: + 85 C

ESD Protection: ESD Protection

Packaging: Tube

Brand: ADI

Height: 1.5mm (max)

Length: 10mm (max)

Number of transceivers: 1 transceiver

Operating supply voltage: 3 V to 5.5 V

Outlet Type: Single Ended

Product: RS-232 Transceivers

Product type: RS-232 interface IC

Supported protocol: RS-232

Receiver Signal Type: Single Ended

Shutdown: No Shutdown

D/C 22+

QTY 4800

Subcategory: Interface ICS

Supply type: a single supply

Width: 4mm (max)

Unit Weight: 0.023492 ounces
