Description

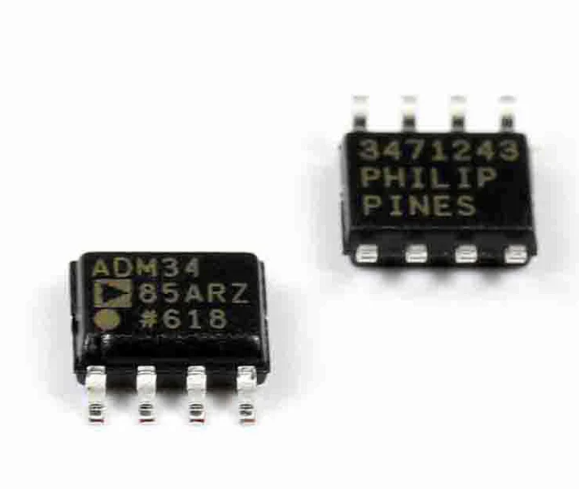

ADI ADM3485EARZ Chips
Megatronicka #: ADM3485EARZ
Mfr. #: ADM3485EARZ
Manufacturer: ADI
Client #:
ADM3485EARZ is an RS-422/RS-485 interface IC. This chip offers an enhanced output impedance and increased noise immunity. ADM3485EARZ can be used in various industrial and commercial applications, including educational, medical, automotive, telecommunications, and IT.
Datasheet: ADM3485EARZ Datasheet (PDF)
Product attribute: Attribute value: Select attribute
Manufacturer: ADI
Product category: RS-422/RS-485 interface IC
RoHS: Details
Series: ADM3485E
Mounting Style: SMD/SMT
Package/Case: SOIC-8
Function: Transceiver
Number of conductors: 1 conductor
Number of receivers: 1 receiver
Data rate: 10 Mb/s
Supply voltage - Max: 3.3 V
Supply voltage - Min: 3.3 V
Minimum operating temperature: - 40 C
Maximum operating temperature: + 85 C
Packaging: Tube
Brand: ADI
Development Kit: EVAL-CN0313-SDPZ
Duplex: half duplex
ESD Protection: ESD Protection
Height: 1.5mm (max)
Length: 5mm (max)
Number of I/O: 1
Number of input lines: 10 on RS-422, 32 on RS-485
Number of output lines: 1
Operating supply current: 2.2 mA
Operating supply voltage: 3.3V
Output type: 3 states
Product type: RS-422/RS-485 interface IC
Shutdown: Shutdown
D/C 21+
QTY 9800
Subcategory: Interface ICS
Width: 4mm (max)
Unit Weight: 0.019048 ounces
