DC-DC Converter

  • Converter Type: step-up, switched capacitor, doubler, inverting
  • Input voltage range, V: 1.5 … 7
  • Output voltage range, V: -vin, 2 x vin
  • Maximum output current, A: 0.1
  • Operating frequency, kHz: 120
  • Case Type: dip8

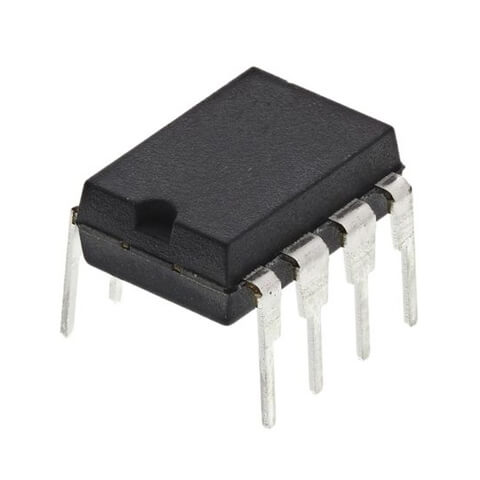

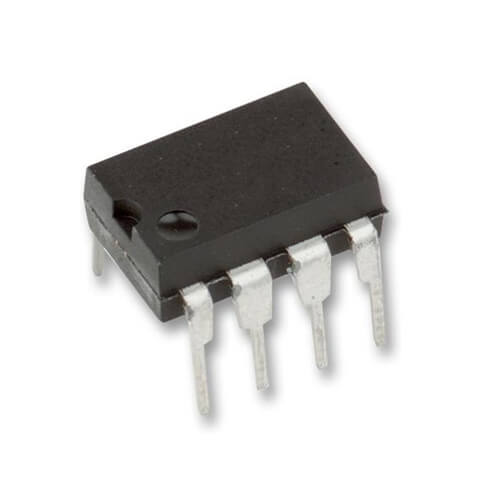

DC-DC Converter 1.5-7V 100mA, (-40 … + 85) [DIP-8]

Inquire Now


The ADM660ANZ is a CMOS switched-capacitor Voltage Converter that can be used to either invert the input supply voltage giving VOUT = -VIN or double it (ADM660 only) giving VOUT = 2 x VIN. The inverting scheme is ideal for generating a negative rail in single power supply systems. Only two small external capacitors are needed for the charge pump. Output current up to 50mA with greater than 90% efficiency are achievable, while 100mA achieves greater than 80% efficiency.

  • Selectable charge pump frequency (25 / 120kHz)
Nom. number 21146
Production Analog Devices
Converter Type step-up, switched capacitor, doubler, inverting
Input voltage range, V 1.5 … 7
Output voltage range, V -vin, 2 x vin
Maximum output current, A 0.1
Operating frequency, kHz 120
Case Type dip8
Weight, g 1
Manufacturer Analog Devices
