ADUM1100ARZ

ADI ADUM1100ARZ Megatronicka #: ADUM1100ARZ Mfr. #: ADUM1100ARZ Manufacturer: ADI Client #: ADUM1100AR is a product with the number ADUM1100AR. It is a digital isolator with one channel constructed of the SMD/SMT mounting style, SOIC-8 package, 100 Mb/s data rate, and Unidirectional polarity. Datasheet: ADUM1100ARZ Datasheet (PDF) ADI ADUM1100ARZ specs Product attribute: Attribute value: Select attribute […]


Inquire Now

Description

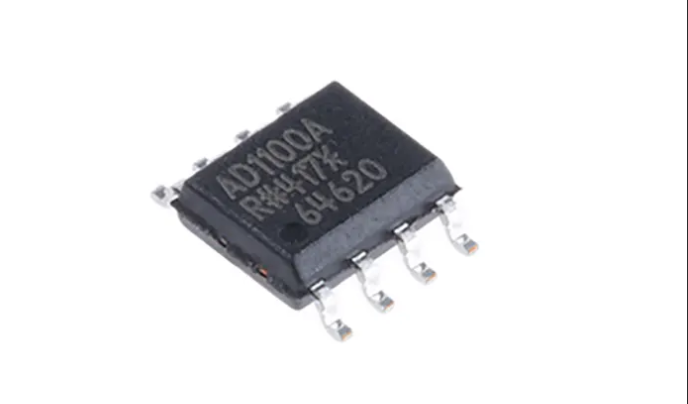

ADI ADUM1100ARZ

Megatronicka #: ADUM1100ARZ

Mfr. #: ADUM1100ARZ

Manufacturer: ADI

Client #:

ADUM1100AR is a product with the number ADUM1100AR. It is a digital isolator with one channel constructed of the SMD/SMT mounting style, SOIC-8 package, 100 Mb/s data rate, and Unidirectional polarity.

Datasheet: ADUM1100ARZ Datasheet (PDF)

ADI ADUM1100ARZ specs

Product attribute: Attribute value: Select attribute

Manufacturer: ADI

Product Category: Digital Isolators

RoHS: Details

Series: ADUM1100

Mounting Style: SMD/SMT

Package/Case: SOIC-8

Number of channels: 1 channel

Polarity: Unidirectional

Data rate: 100 Mb/s

Isolation voltage: 2500 Vrms

Insulation Type: Magnetic Coupling

Supply voltage – Max: 5.5 V

Supply voltage – Min.: 3 V

Operating supply current: 800 uA

Propagation delay time: 18 ns

Minimum operating temperature: – 40 C

Maximum operating temperature: + 125 C

Packaging: Tube

Brand: ADI

Maximum Fall Time: 3 ns (typical)

Maximum rise time: 3 ns (typical)

Operating supply voltage: 5.5V

Pd – Power dissipation: 240 mW

Product Type: Digital Isolators

Supported Protocol: General Purpose

Pulse Width: 40ns

98

Subcategory: Interface ICS

Type: high speed

Unit Weight: 0.019048 ounces
