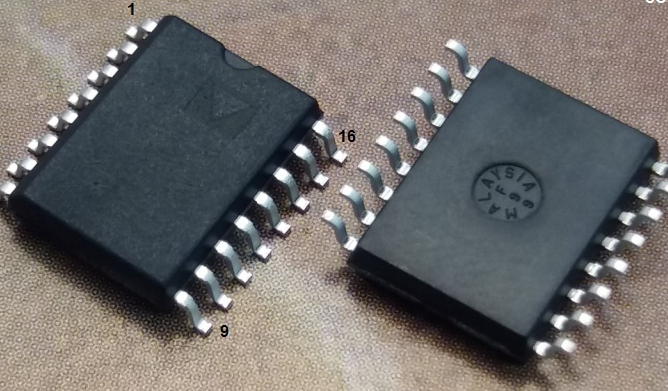

ADI ADUM1400ARWZ

Mouse number: ADUM1400ARWZ

Manufacturer: ADI

Client #:

The ADUM1400ARWZ is a single-channel digital isolator designed for high-frequency applications. It is made of ceramic and is insulated from the highly radioactive environment at the magnetron sputter deposition process. The product specifications are four channels, unidirectional data rat, rated 1kV DC / 100V AC and RoHS compliant.

Datasheet: ADUM1400ARWZ Datasheet (PDF)

ADI ADUM1400ARWZ specs

Product attribute: Attribute value: Select attribute

Manufacturer: ADI  megatronicka

Product Category: Digital Isolators

RoHS: Details

Series: ADUM1400

Mounting Style: SMD/SMT

Package/Case: SOIC-16

Number of channels: 4 channels

Polarity: Unidirectional

Data rate: 1 Mb/s

Isolation voltage: 2500 Vrms

Insulation Type: Magnetic Coupling

Supply voltage – Max: 5.5 V

Supply voltage – Min: 2.7 V

Operating supply current: 18mA, 70mA

Propagation delay time: 65 ns

Minimum operating temperature: – 40 C

Maximum operating temperature: + 105 C

Packaging: Tube

Brand: ADI

Development Kit: EVAL-CN0235-SDPZ

Maximum Fall Time: 3 ns (typical)

Maximum rise time: 3 ns (typical)

Operating supply voltage: 5 V

Product Type: Digital Isolators

Pulse Width: 1000ns

47

Subcategory: Interface ICS

Type: General Purpose

Unit Weight: 0.023492 ounces
