Relay voltage regulator, 220V, 1000W
- Input voltage, V: 140 … 260
- Output voltage, V: 220
- Sizes, mm: 140x170x237
- Load power, W: 1000
- Weight kg: 3.25

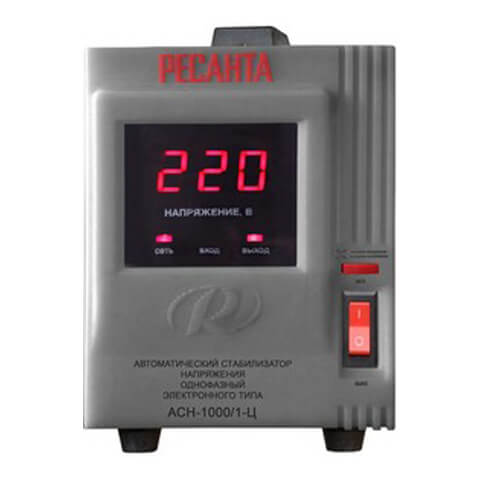

The ASN-1000/1-Ts stabilizers are equipped with microprocessor control, a digital voltage indicator. The display shows the input / output voltage.
Input voltage range, V 140-260
Nominal value of the output voltage, V 220 ± 8%
Nominal power at Uin≥190 V (kW) 1
Operating frequency (Hz) 50/60
Efficiency, at a load of 80%, not less than 97
Accuracy of maintaining the output voltage (%) 8
Net weight (kg) 3.53
Control time (ms) 5-7
No sinusoid distortion
High – voltage protection (V) 260 ± 5
Protection class IP 20 (unpressurized)
Overall dimensions, L × W × H (mm) 140x170x237
Operating ambient temperature (˚С) 0-45
Relative humidity, not more than (%) 80
The principle of operation. Voltage regulation occurs by switching the windings on the transformer using a relay. Therefore, this type of stabilizer is called “relay”. Step-by-step adjustment is carried out. With step adjustment, the accuracy of the output voltage increases to 8%, i.e. 17.6 V, which is quite acceptable for all household appliances. But due to this, the adjustment time is reduced, it is minimal and is 20-35 msec, i.e. less than 1 second! Such a stabilizer should be installed in places where the input voltage is constantly changing.
|Input voltage, V||140 … 260|
|Output voltage, V||220|
|Load power, W||1000|
