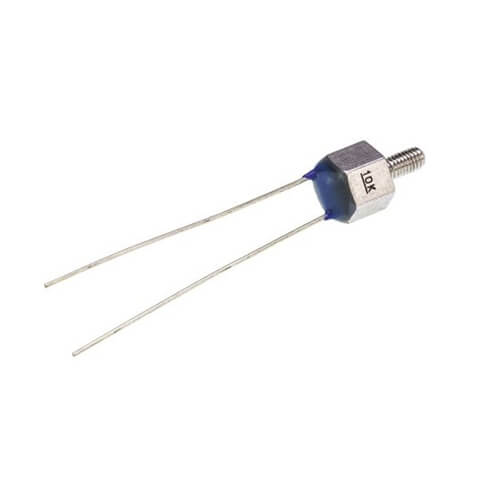

B57045-K 103-K, 10 kΩ, 10%
NTC thermistor
- Application area: temperature measurement
- Resistance at 25 degrees C, Ohm: 10000
- Case Diameter, mm: 8
- Body length mm: 21
- Accuracy, %: 10
- Operating temperature, C: -55 … 125
- Design: with nut mounting
Inquire Now
Description
Overview:
So B57045-K 103-K, NTC thermistors are temperature-dependent resistors whose resistance decreases with increasing temperature. Moreover they are most often used for precision temperature measurement in automotive, consumer and industrial electronics, in communication systems. Therefore if you are willing to get the product you can easily get from Megatronika. In addition to this we not only offer the best quality but also the least order delivery time.
| Nom. number | 8486 |
| Production | Epcos |
| A type | k45 |
| Application area | temperature measurement |
| Resistance at 25 degrees C, Ohm | 10,000 |
| Accuracy, % | 10 |
| Coefficient of temperature sensitivity | 4300 |
| Design | with nut mounting |
| Case Diameter, mm | 8 |
| Body length mm | 21 |
| Operating temperature, C | -55 … 125 |
| Weight, g | 1 |
| Manufacturer | Epcos |
Applications
- Temperature compensation, measurement and control (chassis mounting)
Features
- So this is cost-effective
- Good thermal coupling through screw-type case (thread M3)
- Electrically isolated aluminum case
- Tinned copper leads Options
- In addition to this tighter resistance tolerance available on request.
Delivery mode
- Bulk
Soldering
- Use resin-type flux or non-activated flux.
- Insufficient preheating may cause ceramic cracks.
- Rapid cooling by dipping in solvent is not recommended.
- Complete removal of flux is recommended.
Notes:
Avoid contamination of thermistor surface during storage, handling and processing. Moreover Avoid storage of thermistors in harmful environments like corrosive gases (SOx, Cl etc).
So use the components as soon as possible after opening the factory seals, i.e. the polyvinyl-sealed packages. However solder thermistors within the time specified after shipment from EPCOS. Hence Electrodes/contacts must not be scratched or damaged before/during/after the mounting process.
