BTD1

End Detector

(1 channel, line break)


Inquire Now

Description

BTD1 Read more below! We have all the useful information about the product listed and well described for our customers.

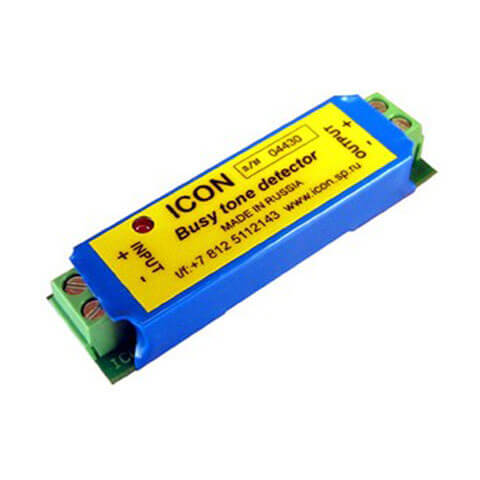

ICON BTD1 – a single-channel hang-up detector powered by a telephone line.

Compact single-channel detector connected to the telephone line break. The detector is necessary for the correct operation of the PBX functions, which provide for the establishment of a trunk to trunk connection, for example, call forwarding to an external subscriber, DISA, etc. Without a detector, rupture of such connections is possible only by timer, which leads to long-term busy external lines.

Features ICON BTD1

The number of channels in one device 1
Line resistance No more than 47 ohms
Busy Signal Type 425 Hz
The minimum amplitude of the detected signal 30 mV
Reaction time for the busy signal 5 s
Hang up method Loop break (2s)
Dimensions ICON BTD1 17 x 14 x 69 mm

Nom. number 9000295067
Manufacturer ICON
