Summary:

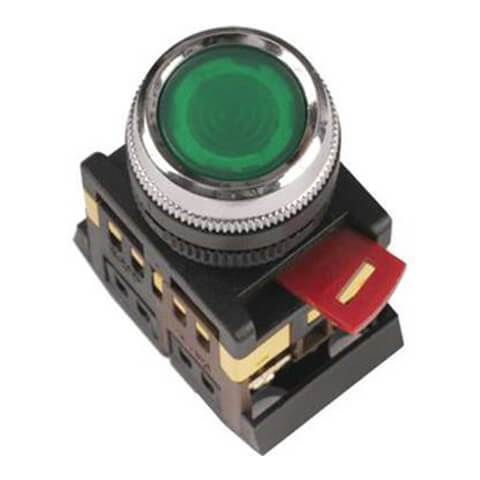

Button ABLF-22 green 1z + 1r IEK BBT10-ABLF-K06 is designed to provide operational control of magnetic starters (contactors) and automation relays in AC circuits with a frequency of 50 Hz and a maximum voltage of 660 V, as well as in DC circuits with a voltage of 400 V.

The product, Button ABLF consists of a contact module and a removable head. The contact group of black is closing, brown – breaking. The removable head makes it possible to quickly replace lamps and filters. Conductors are connected to the button using screw terminals.

The LED matrix in the indicator provides a strong luminous flux, which is more powerful than the flux from neon lamps. In addition, the life of the matrix is ​​increased (up to 6 thousand hours).

The simple design allows you to quickly mount and disassemble a button on a panel or panel. Due to the rubber o-rings, protection is provided against foreign objects entering the mechanism.

Specifications:

• diameter of the mounting hole – 22mm;
• contact group – 1NO + 1NZ;
• button – with return, without fixing;
• button color – green;
• rated voltage – 230V4
• manufacturer – IEK

Modular button for switchboards
