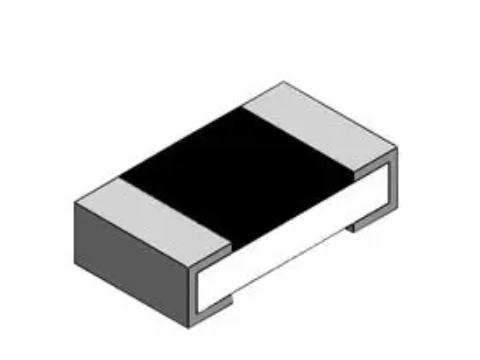

CRGCQ0805J1R0

CRGCQ0805J1R0 is a surface mount general purpose resistor. Commonly used in various electronic circuits. It is part of the CRGCQ series of resistors produced by Vishay. The “CRGCQ” in the name stands for “Thick Film General Purpose Resistor”. “0805” represents the package size, which is a rectangle of 2.0mm x 1.25mm. The “J1R0” indicates the […]


Inquire Now

Description

CRGCQ0805J1R0 is a surface mount general purpose resistor. Commonly used in various electronic circuits. It is part of the CRGCQ series of resistors produced by Vishay.

The “CRGCQ” in the name stands for “Thick Film General Purpose Resistor”. “0805” represents the package size, which is a rectangle of 2.0mm x 1.25mm. The “J1R0” indicates the resistance value of the resistor, which in this case is 1.0 ohm.

The resistor is rated at 0.125 watts with a 5% tolerance. This means that its actual resistance value may vary by up to 5% from the specified value of 1.0 ohms. It has a maximum operating temperature of 155°C . Suitable for various electronic applications.

Overall, the CRGCQ0805J1R0 is a reliable and commonly used general purpose resistor. Can be used in electronic circuits for a variety of different applications.

CRGCQ0805J1R0  Feature

  • Package size:The resistor comes in an 0805 package size and is rectangular. Dimensions are 2.0mm x 1.25mm. This makes it easy to mount and use in a variety of electronic circuits.
  • Resistance value: The resistance value of the CRGCQ0805J1R0 resistor is 1.0 ohms. This is a common value for a general purpose resistor. It is also available in other resistance values ranging from 1 ohm to 10 megaohms.
  • Power rating: The resistor is rated at 0.125 watts. This means it can handle a maximum of 0.125 watts without damage.
  • Tolerance: The CRGCQ0805J1R0 resistor has a 5% tolerance. This means that its actual resistance value may vary by up to 5% from the specified value of 1.0 ohms.
  • Operating temperature: The resistor has a maximum operating temperature of 155°C . Suitable for various electronic applications.
  • Thick film technology:The CRGCQ0805J1R0 resistors are thick film technology. Provides good stability and low noise performance.

FAQ

Q: What is the CRGCQ0805J1R0 resistor?

A: The resistor is a general purpose surface-mount resistor with a resistance value of 1 ohm and a tolerance of 5%. It is a chip resistor that measures 2mm x 1.2mm in size.

Q: What is the power rating of the CRGCQ0805J1R0 resistor?

A: The power rating of the resistor is 125mW.

Q: What is the maximum voltage that can be applied to the CRGCQ0805J1R0 resistor?

A: The maximum voltage that can be applied to the resistor is 50V.

Q: What is the temperature coefficient of the CRGCQ0805J1R0 resistor?

A: The temperature coefficient of the resistor is ±200 ppm/°C.

Q: What is the material used to make the CRGCQ0805J1R0 resistor?

A: The resistor is made from a thick film of metal alloy deposited on a ceramic substrate.

Q: What are some common applications for the CRGCQ0805J1R0 resistor?

A: This resistor can be used in a wide range of applications. Includes power supply, voltage regulator and current limiting circuit. It can also be used in audio circuits, LED lighting, and automotive electronics.
