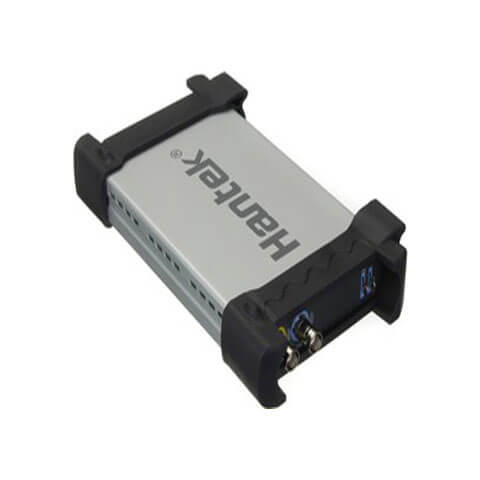

DSO6022BE

USB Oscilloscope, 2 Channels x 20MHz

  • Device type: oscilloscope
  • Weight, g: 850

Inquire Now

Description

DSO6022BE Platform 6000

Overview:

USB 2.0 interface, does not require external power. Suitable for use with laptop computers. Aluminum housing that can be positioned horizontally or vertically. Size (mm): 205 (length) x 120 (width) x 35 (height). 23 measurement functions. Emulation of an electronic phosphor, addition, subtraction, multiplication, division, XY graph. Saving a signal in the following formats: text, jpg / bmp, MS excel / word file. FFT You can connect multiple devices to one computer.

Attention!

The main feature of the model is the dependence of the skipping band on the selected volt / division value.
The maximum input range without a divider is from -4.5 to +4.5 volts. When exceeded, the signal will not only be cut off, but inverted and shown in reflection.
In addition, she does not have a closed input (AC coupling). Those. the constant component will always be at the input. This can be circumvented by independently passing the signal through the capacitor.
The official software is quite limited, but in the support / download section you will find third-party software with advanced features.
There is no external synchronization in this device. The amount of memory depends on the selected time / division and is not set manually.
If this limitation does not suit you, consider the DSO-6052BE.

Features.

Interface USB 2.0, does not require external power.

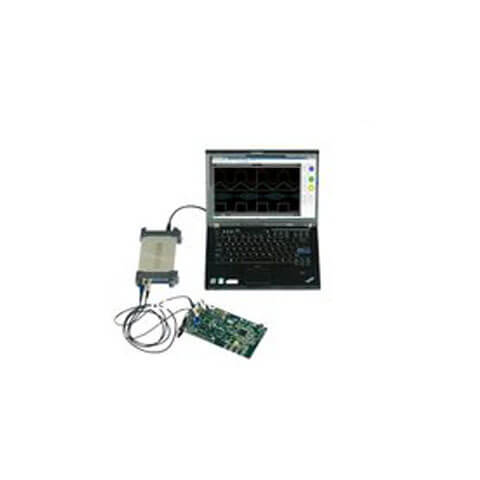

Suitable for use with laptop computers. Aluminum case.
Size (mm): 205 (length) x 120 (width) x 35 (height). It can be located both horizontally and vertically. Occupies a minimum of table space.
OS: Windows XP, VISTA, 7.
Saving the signal in the following formats: text, jpg / bmp, MS excel / word file.
You can connect multiple devices to one computer

Attention! When measuring voltage, correctly set the attenuator on the probe! Too much measured voltage will damage the device and endanger you and the connected computer. Do not measure voltages greater than 35V in 1X probe mode!

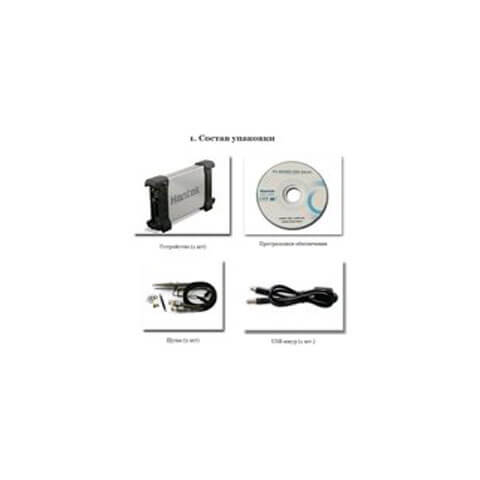

Completeness:
Device -1pcs
USB cable – 1pcs
Probes -2pcs
Software

Nom. number 9000266696
Manufacturer Hantek
Device type oscilloscope
Weight, g 850

Get DSO6022BE now.
