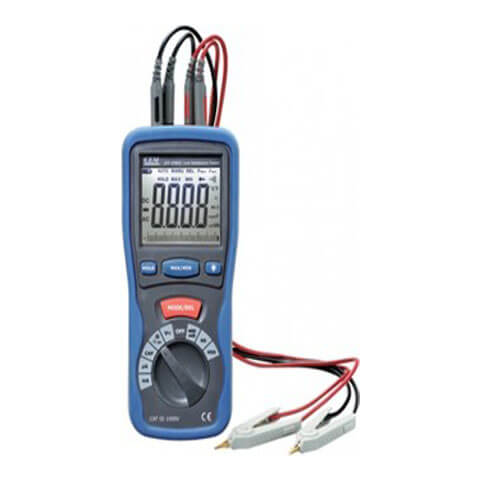

The DT-5302 device combines the functions of a milliometer, megger, voltmeter, ammeter, and also allows you to check the diodes and check the integrity of the circuit ("continuity").

Features of the millimeter DT-5302 :

• Measurement of low resistance; 4-wire connection diagram.
• Measurement of voltage or strength of direct or alternating current.
• Measurement of resistance and capacitance of a circuit section.
• Checking the diodes and the integrity of the circuit (“ringing”).
• Definition of maximum / minimum readings.
• Automatic switching of measuring ranges.
• LCD with 4-digit digital display and backlight.
• Hold the display. • Low battery indication.
• Indication of exceeding the measurement range (“OL” + sound).
• Auto power off after 15 minutes of inactivity.
• Complies with IEC 61010-1.
• Table stand.
• Type of multimeter: digital, portable.
• Accuracy: 1%
• Post. voltage: 400 mV ... 1000 V

м AC voltage: 400 mV ... 750 V

• DC t ok: 400 μA ... 400 mA
• Resistance: 400 Ohm ... 40 MΩ
• Capacitance: 4 nF ... 40 mF
• Add. functions: diode test, ringing circuit, graphic scale

Components of the millimeter DT-5302

• Milliometer DT-5302;
• Test leads - 4 pcs.;
• Batteries, type Aa - 6 pcs.;
• Case;
• Operation manual;
