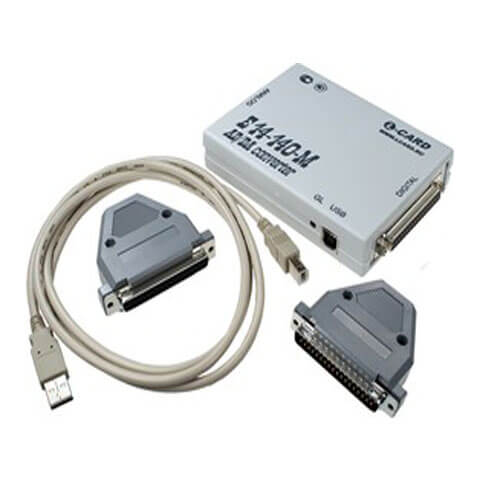

External ADC / DAC module to USB bus (State Register)

  • Weight, g: 200

Inquire Now


  • E14-140-M ALC: 16/32 channels, resolution – 14 bits, maximum conversion frequency – 200 kHz, input ranges: ± 10 V, ± 2.5 V, ± 0.6 V, ± 0.15 V
  • Start synchronization: external digital, internal, by analog signal level, intermodular
  • DAC installation: 2 channels, resolution – 16 bits, output signal ± 5 V no more than ± 10 mA, settling time 0.7 μs
  • Digital I / O: 16/16.
  • Power – from a computer.
  • Built-in ARM AT91SAM7S256 processor (48 MHz, 64 kB RAM), available for user programming.
  • Included in the State Register of Measuring Instruments of the Russian Federation.

The kit includes the LGraph2 program – an oscilloscope, data logger and analyzer and the necessary materials to create your own programs.

Weight, g200

Nom. number 9000084169
Manufacturer Russia
