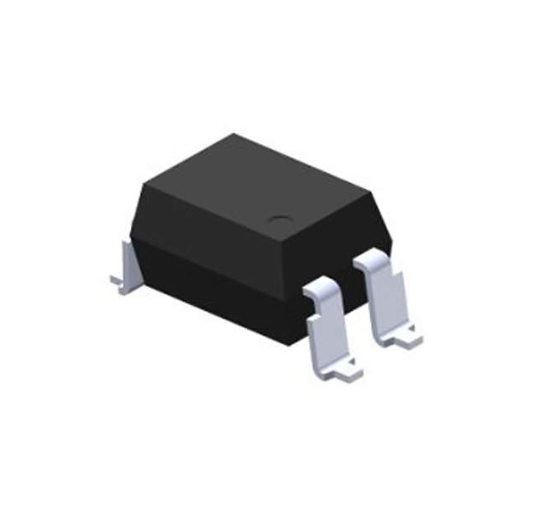

The EL3052S(TA) is an optocoupler device consisting of a triac and an SCR output. Optocouplers are electronic components. It use light to transmit electrical signals between two isolated circuits.

The TRIAC and SCR outputs of the EL3052S(TA) optocoupler make it suitable for applications. Such as motor control, lamp dimming, and power switching. The device can be used in various types of equipment. Including industrial control systems, lighting systems and appliances.

EL3052S(TA) Feature

• Triac and SCR outputs: The device has both a triac and an SCR output. Making it suitable for applications that require power switching, motor control. And lamp dimming.
• High blocking voltage: The maximum blocking voltage of 600 volts ensures. that the optocoupler can withstand high reverse voltages without conducting.
• High isolation voltage: The maximum isolation voltage of 5000 volts rms ensures. That the device can safely isolate two circuits that have a potential difference of up to 5000 volts.
• Wide operating temperature range: The device can operate over a wide temperature range of -55°C to +100°C . Making it suitable for use in harsh environmental conditions.
• Compact size: The EL3052S(TA) is a compact device that is easy to integrate into electronic circuits. Making it ideal for space-constrained applications.
• High reliability: The optocoupler is designed for high reliability. And can operate for long periods without failure. Making it ideal for use in critical applications where failure is not an option.

FAQ

Q: What is the maximum voltage that the EL3052S(TA) optocoupler can isolate?

A: The EL3052S(TA) optocoupler has a maximum isolation voltage of 5000 volts rms. Which means that it can safely isolate two circuits that have a potential difference of up to 5000 volts.

Q: What is the temperature range over which the EL3052S(TA) optocoupler can operate?

A: The EL3052S(TA) optocoupler can operate over a wide temperature range of -55°C to +100°C . Making it suitable for use in harsh environmental conditions.

Q: What are the typical applications of the EL3052S(TA) optocoupler?

A: The EL3052S(TA) optocoupler is suitable for applications. That require power switching, motor control, and lamp dimming. It can be used in various types of equipment. Including industrial control systems, lighting systems, and appliances.

Q: What is the size of the EL3052S(TA) optocoupler?

A: The EL3052S(TA) optocoupler is a compact device. That is easy to integrate into electronic circuits. The exact size of the device may vary depending on the manufacturer, but it typically has a small footprint.

Q: How reliable is the EL3052S(TA) optocoupler?

A: The optocoupler is designed for high reliability and can operate for long periods without failure. It is ideal for use in critical applications where failure is not an option. However, the exact reliability of the device may vary depending on the operating conditions and the manufacturer.
