EL817(S)(B)(TU)

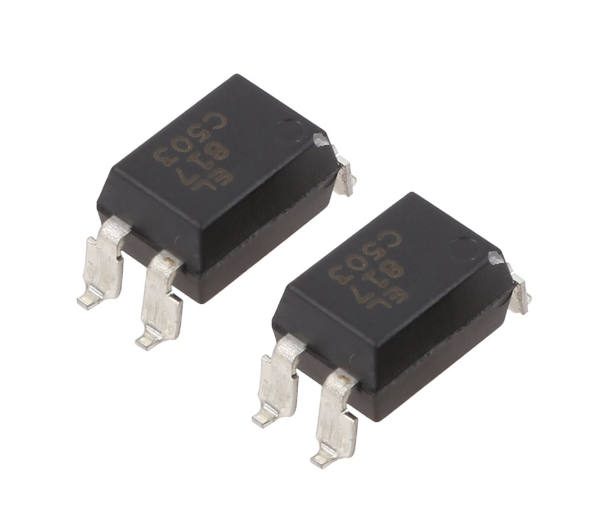

The EL817(S)(B)(TU) optocoupler is a surface-mount device with a high-speed transistor output that is supplied in tape and reel packaging.
Inquire Now
Description
The EL817(S)(B)(TU) optocoupler is a surface-mount device with a high-speed transistor output. That is supplied in tape and reel packaging. It can be used in a variety of applications. including digital logic interfaces, microprocessor system interfaces, and switch-mode power supplies.
EL817(S)(B)(TU) is a part number for a type of optocoupler or photocoupler. Which is a device that transfers electrical signals between two isolated circuits by using light. The part number contains several suffixes that specify the specific features of the optocoupler.
EL817(S)(B)(TU) Feature
- High-speed switching: The optocoupler has a high-speed transistor output. That allows it to switch quickly between on and off states. This is useful for applications that require fast response times.
- Surface-mount package: The optocoupler is available in a surface-mount package. Which makes it easy to mount onto a printed circuit board.
- Wide temperature range: The optocoupler can operate over a wide temperature range, from -55°C to 110°C . This makes it suitable for use in harsh environments.
- High isolation voltage: High isolation voltage up to 5000Vrms is provided between input and output circuits. This ensures that there is no direct electrical connection between the two circuits. Which can be important for safety reasons.
- Tape and reel packaging: The optocoupler is supplied in tape and reel packaging. Which allows it to be easily loaded onto a surface mount assembly machine for automated manufacturing.
FAQ
Q: What is an optocoupler?
A: An optocoupler. Also known as a photocoupler, is a device that transfers electrical signals between two isolated circuits by using light.
Q: What is the purpose of an optocoupler?
A: The purpose of an optocoupler is to provide electrical isolation between two circuits. While still allowing them to communicate with each other. This can be important for safety reasons. Or to prevent electrical noise or interference from affecting the signals being transferred.
Q: What is a high-speed transistor output?
A: A high-speed transistor output is a type of output that can switch quickly between on and off states. This is useful for applications that require fast response times.
Q: What is surface-mount packaging?
A: Surface-mount packaging is a type of packaging for electronic components. That can be mounted directly onto a printed circuit board. This allows for more compact and efficient designs, as well as easier and faster assembly.
Q: What is tape and reel packaging?
A: Tape and reel packaging is a type of packaging for electronic components. That allows them to be easily loaded onto a surface mount assembly machine for automated manufacturing. The components are typically placed in a long strip of tape, with evenly spaced pockets. That hold each component, and wound onto a reel.
