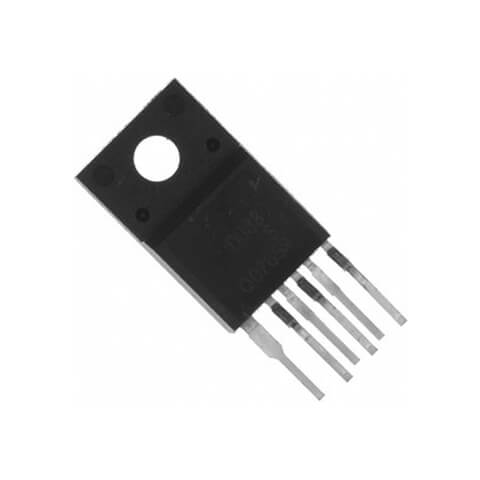

FSDM0465REWDTU
Power Switch
- Transducer type: flyback
- The maximum frequency of the converter, kHz: 66
- Maximum converter duty cycle, %: 82
- Failure protection: cur.lim., over load / temp. / Volt.
- Operating temperature, ° C: -25 … + 85
- Case: to-220f-4, formed
Power Switch [TO-220F-6L]
Inquire Now
Description
Description
The FSDM0465REWDTU is an integrated Pulse Width Modulator (PWM) and Sense FET specifically designed for high-performance offline Switch Mode Power Supplies (SMPS) with minimal external components. This device is an integrated high-voltage power-switching regulator that combines an avalanche-rugged SenseFET with a current mode PWM control block.
However the PWM controller includes an integrated fixed-frequency oscillator, under voltage lockout, leading-edge blanking (LEB), optimized gate driver, internal soft-start, temperature-compensated precise-current sources for a loop compensation, andself-protection circuitry. Therefore compared with a discrete MOSFET and PWM controller solution, it can reduce total cost; component count, size, and weight; while simultaneously increasing efficiency, productivity, and system reliability. Above all this device is a basic platform well suited for cost-effective designs of fly back converters.
Note:
Here we have listed all the features for the product. Moreover these features are correct based on this update. Find more about the product and company below. So we have summarized everything for you.
Features
- Internal Avalanche-Rugged Sense FET
- Advanced Burst-Mode Operation Consumes Under 1W at 240VAC & 0.5W load
- Precision Fixed Operating Frequency (66kHz)
- Internal Start-up Circuit
- Improved Pulse-by-Pulse Current Limiting
- Over-Voltage Protection (OVP)
- Overload Protection (OLP)
- Internal Thermal Shutdown Function (TSD)
- Auto-Restart Mode
- Under-Voltage Lockout (UVLO) with hysteresis
- Low Operating Current (2.5mA)
- Built-in Soft-Start
| Nom. number | 9000096335 |
| Pr-in | ON Semiconductor |
| Series | fps |
| Transducer Type | flyback |
| Existence of exit isolation | yes |
| The presence of an internal switch | yes |
| The maximum voltage of the power switch, V | 650 |
| Rated power, W | 56 |
| Maximum frequency of the converter, kHz | 66 |
| Maximum duty cycle of the converter, % | 82 |
| Failure protection | cur.lim., over load / temp. / Volt. |
| Operating temperature, ° C | -25 … + 85 |
| Case | to-220f-4, formed |
| Weight, g | 2 |
| Manufacturer | Fairchild Semiconductor |
