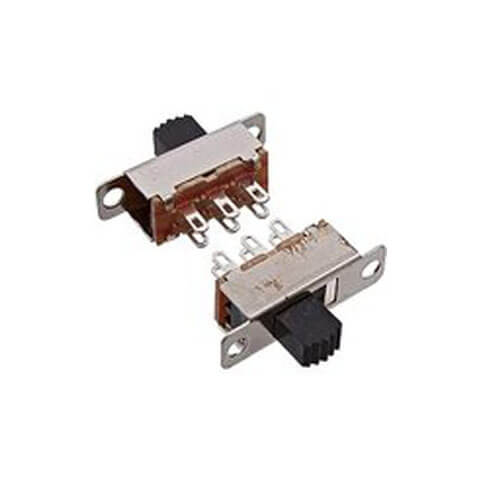

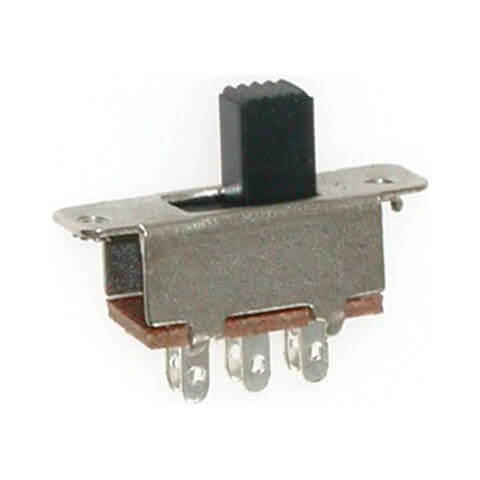

slide switch 6p.ON-ON 0.5A 250V
- Mounting method: soldered
- Type of execution: straight
- Number of Contact Groups: 2
- The number of contacts in the contact group: 3
- Work algorithm: 2x switching
- Insulator resistance not less, MΩ: 100
- Resistance of contacts no more, Ohm: 0.1
- Operating voltage, V: 250
- Voltage limit, V: 1100 VAC for 1 min
- Working current, A: 0.5
- Operating temperature, C: -50 … 55
- Weight g: 12
So KBB40-2P2W is a product of Jietong Switch, it is a slide switch 6p.ON-ON 0.5A 250V.
|Type of execution||straight|
|Number of Contact Groups||2|
|The number of contacts in the contact group||3|
|Work algorithm||2x switching|
|Insulator resistance not less, MΩ||100|
|Resistance of contacts no more, Ohm||0.1|
|Operating voltage, V||250|
|Voltage limit, V||1100 VAC for 1 min|
|Working current, A||0.5|
|Operating temperature, C||-50 … 55|
When choosing a slide switch, you should also consider the assembly method. The most commonly used are models for PCB mount, which can be mounted in a vertical or horizontal position (angle switches), depending on the model. In case of switches with more than two positions, it’s good to pay attention to the OFF position – whether it ensures that no circuits are shorted.
