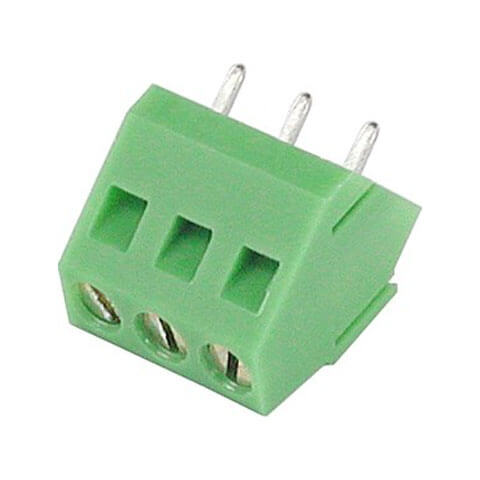

KLS2-104-5.00-03P-4S

3-pin screw terminal block, 5mm, straight

  • Type of execution: straight
  • Functional purpose: screw terminal block
  • Contact Step: 5
  • Working current, A: 10
  • Number of contacts: 3
  • The maximum section of the clamped wire, AWG: 22 … 14
  • Operating voltage, V: 250
  • Mounting method: soldering into board holes
  • Weight g: 3

Inquire Now

Description

Why KLS2-104-5.00-03P-4S?

Nom. number 9000329446
Manufacturer KLS electronic co ltd
Type of execution straight
Functional purpose screw terminal block
Contact Step 5
Working current, A 10
Number of contacts 3
The maximum section of the clamped wire, AWG 22 … 14
Operating voltage, V 250
Mounting method soldering into board holes
Weight g 3

Material

  • Screws: M2.5 steel Zinc plated
  • Wire guard: phosphor bronze Ni plated or stainless steel
  • Pin header: Brass, Tin plated
  • Housing: PA66, UL94V-0

Nothing makes a project harder to maintain than a lot of loose wiring. That’s why we like to use terminal blocks whenever making PCB-to-Wire connections
