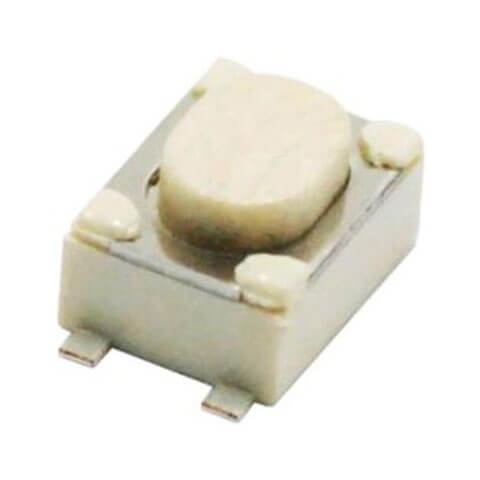

KLS7-TS3401-2.5-180 (TVAF11)

Clock button SMD 4x3x3.5mm

  • A type: straight
  • Mounting method: surface mount
  • Operating voltage, V: 12
  • Working current, A: 0.05
  • Height mm: 2.5
  • Size: 3×4
  • Weight g: 1

Inquire Now


The Weight g1, KLS electronic co ltd product KLS7-TS3401-2.5-180 (TVAF11). So you can get this product from Megatronika because we are direct distributor, which means no middle man. Therefore you will get affordable price with no hidden cost. Also we can offer you amazing deals.


  • Rating:50mA 12V DC
  • Contact Resistance:100mΩ Max.
  • Insulation Resistance:100MΩ Min,100V DC
  • Dielectric voltage proof:250V AC for 1min
  • Electrically Life:100000 cycles Min.
  • Operating Force:250±50gf
  • Environment temperature:-30ºC~+80ºC


  • Cards: Phosphor 0.12,Plated nickel silver
  • Pedestal:LCP,White
  • Shrapnel:Stainless steel
  • Push button:LCP,White
  • Cover:Stainless steel 0.2
Nom. number 9000372886
Manufacturer KLS electronic co ltd
A type straight
Mounting method surface mount
Operating voltage, V 12
Working current, A 0.05
Height mm 2.5
Size 3×4
