Original Driver transceiver IC chip ADM3101EACPZ-REEL
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Function | Line Transceiver |
| Data Rate | 460Kbps(Min) |
| Transmitter Communication Type | RS-232 |
| Receiver Communication Type | RS-232 |
| Interface Standards | V.28|EIA-232-E|RS-232 |
| Data Transmission Topology | Point-to-Point |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Number of Receivers | 1 |
| Transmitter Signal Type | Single-Ended |
| Receiver Signal Type | Single-Ended |
| Number of Drivers per Line | 1 |
| Number of Receivers per Line | 1 |
| Number of Transmitter Enables | 0 |
| Number of Receiver Enables | 0 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Power Supply Type | Single |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 3.3 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Maximum Supply Current (mA) | 5 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tape and Reel |
| Standard Package Name | CSP |
| Pin Count | 12 |
| Supplier Package | LFCSP EP |
| Mounting | Surface Mount |
| Package Height | 0.73 |
| Package Length | 3 |
| Package Width | 3 |
| PCB changed | 12 |
| Lead Shape | No Lead |
Inquire Now
Description
- Model Number: ADM3101EACPZ ADM3101EACPZ-250R7 ADM3101EACPZ-REEL
- Type: integrated circuit
- Brand Name: Original brand
- D/C: New

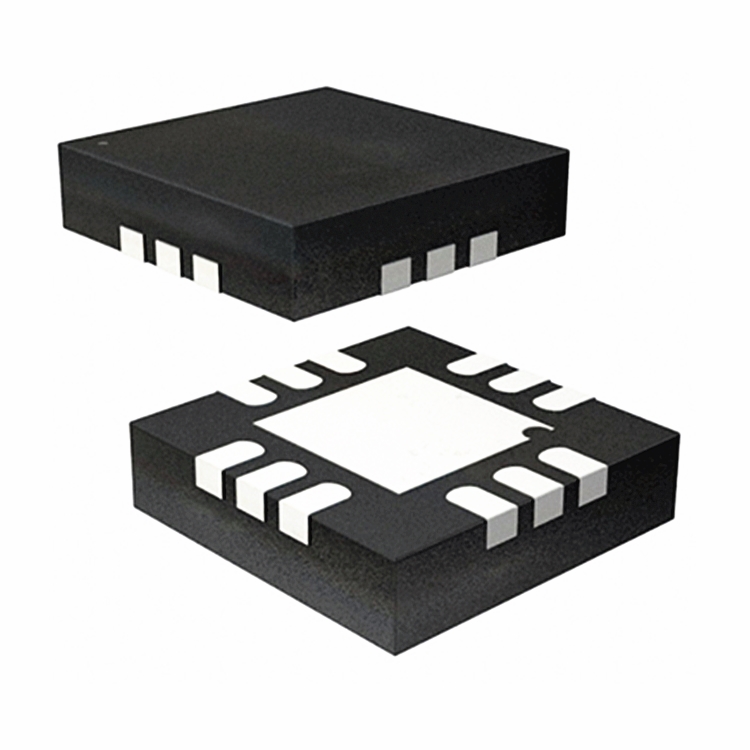

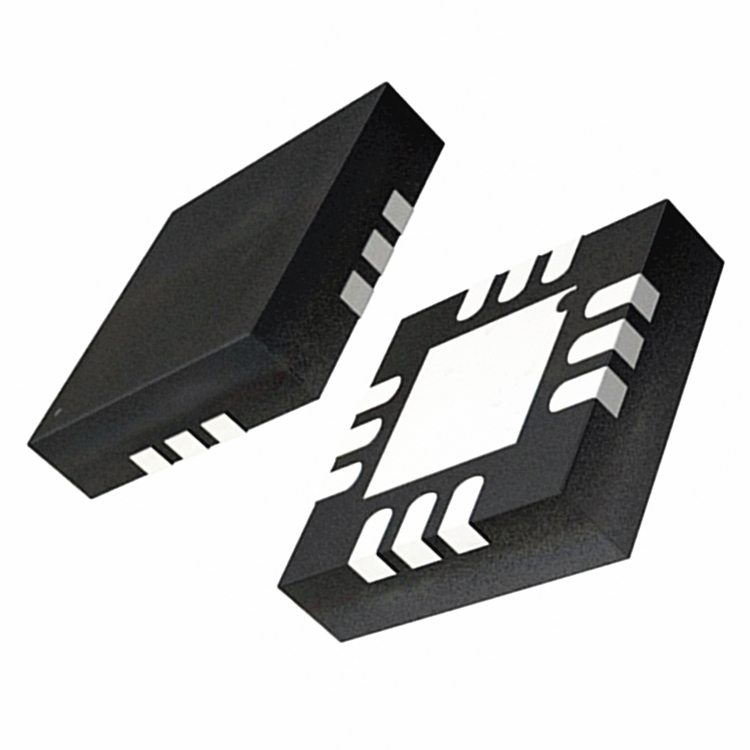

- Package: 12LFCSP
- Description: IC TRANSCEIVER FULL 1/1 12LFCSP
- Part number: ADM3101EACPZ ADM3101EACPZ-250R7 ADM3101EACPZ-REEL
- Condition: Original
