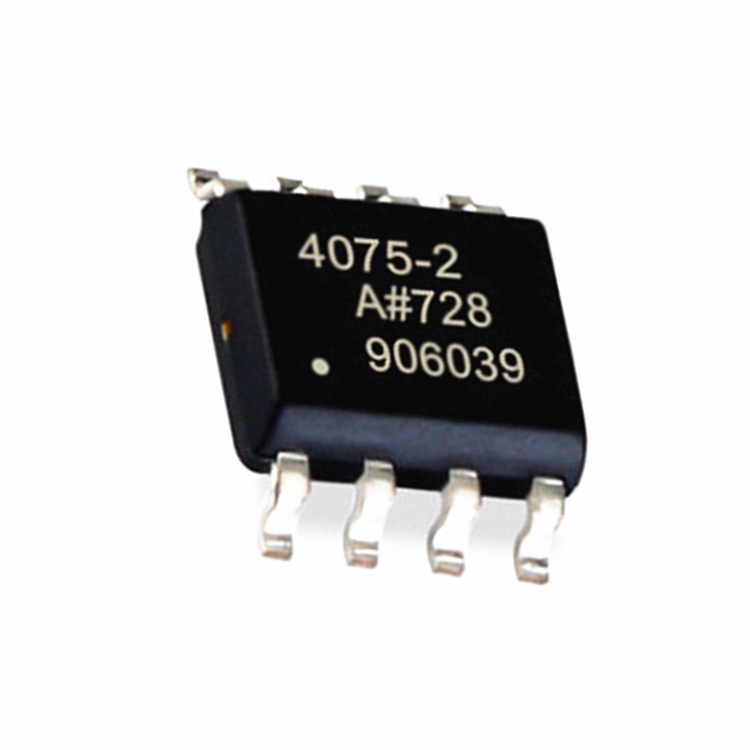

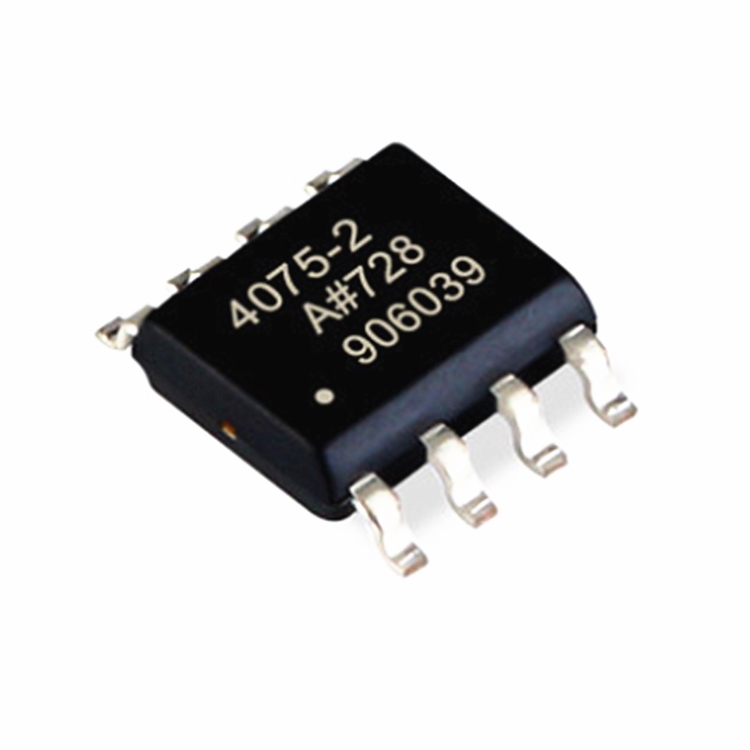

Original Precision amplifier IC Chip ADA4075-2ARZ-R7

  • Model Number: ADA4075-2ARZ ADA4075-2ARZ-R7 ADA4075-2ARZ-RL
  • Type: integrated circuit
  • Brand Name: Original brand
  • D/C: New
  • Package: 8SOIC
  • Description: IC OPAMP GP 2 CIRCUIT 8SOIC

Inquire Now


Product Technical Specifications

EU RoHS Compliant
Part Status Active
HTS 8542.33.00.01
Type Ultra Low Noise Amplifier
Manufacturer Type Ultra Low Noise Amplifier
Number of Channels per Chip 2
Process Technology Bipolar
Maximum Input Offset Voltage (mV) 1@±15V
Minimum Dual Supply Voltage (V) ±4.5
Typical Dual Supply Voltage (V) ±12|±15|±5|±9
Maximum Dual Supply Voltage (V) ±18
Typical Low Level Output Voltage (V) -16.6
Typical High Level Output Voltage (V) 15.8
Maximum Input Offset Current (uA) 0.05@±15V
Typical Input Bias Current (uA) 0.03@±15V
Maximum Input Bias Current (uA) 0.1@±15V
Maximum Supply Current (mA) 4.5@±18V
Typical Output Resistance (Ohm) 0.1
Power Supply Type Dual
Typical Slew Rate (V/us) 12@±15V
Typical Input Noise Voltage Density (nV/rtHz) 2.8@±15V
Input Offset Voltage Drift (uV/°C) 0.3(Typ)
Typical Voltage Gain (dB) 117
Typical Noninverting Input Current Noise Density (pA/rtHz) 1.2@±15V
Minimum PSRR (dB) 106
Minimum CMRR (dB) 110
Minimum CMRR Range (dB) 105 to 115
Typical Gain Bandwidth Product (MHz) 6.5
Typical Settling Time (ns) 3000
Shut Down Support No
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Supplier Temperature Grade Extended Industrial
Packaging Tape and Reel
Standard Package Name SOP
Pin Count 8
Supplier Package SOIC N
Mounting Surface Mount
Package Height 1.5(Max)
Package Length 5(Max)
Package Width 4(Max)
PCB changed 8
Lead Shape Gull-wing

Original Precision amplifier IC Chip ADA4075-2ARZ ADA4075-2ARZ-R7 ADA4075-2ARZ-RL IC OPAMP GP 2 CIRCUIT 8SOIC
