PTi120

Imager -20 ... 150 ° C (120 × 90) 9Hz

  • A type: base
  • The maximum measured temperature, With: 150
  • Display Resolution, px: 120×90
  • Series: fluke pti
  • State registry: not
  • Weight, g: 233

Inquire Now

Description

Overview:

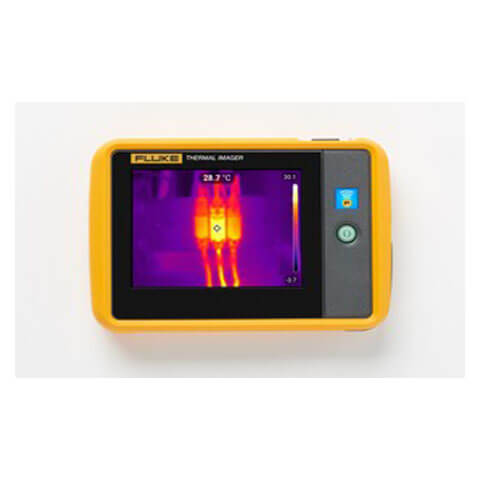

PTi120 Pocket Fluke PTi120 Thermal Imager
Portable thermal imager for industrial inspection
In the right place. At the right time. Using the necessary device.

The more serious the malfunction, the faster it needs to be fixed. The new Fluke handheld thermal imager minimizes downtime for diagnostics by any specialist. This is the first line of defense for easy troubleshooting. Enough to extinguish fires in the workplace, do their prevention.

They are chosen because they do the job.

This thermal imager is so compact that you can carry it with you every day. Always at hand. Resists dirt and water. Moreover Withstands drop from a height of 1 meter.  Therefore Now the device for advanced thermal imaging examinations is in your pocket, providing a quick scan of the temperature of electrical equipment, machine tools and other objects.

Automatically save images to desired folders.

The function of adding tags to units of equipment Fluke Connect eliminates the monotonous work of sorting and organizing infrared images. So just scan the QR code or barcode of a piece of equipment, and the infrared image associated with it, as well as the marked date and time information, will be saved in predefined folders. Moreover Send data via Wi-Fi or automatically download it when connected to a network or computer via USB. The time has come. Therefore now you can more efficiently save and find faults, and report them before they become problems.

Always get infrared images of the required level.

The 3.5-inch LCD touchscreen is equipped with IR-Fusion ™ technology. Moreover It  allows you to combine the visible image with an infrared image to more easily detect problems. So Just swipe the screen to change the setting.

Main characteristics

  • Spatial Resolution, IFOV 7.6 mrad
  • IR resolution 120 × 90 (10,800 pixels) line of sight 50 ° (D) × 38 ° (H)
  • The ratio of the distance to the size of the measured spot 130: 1
  • Measured temperature range (cannot be calibrated below −10 ° C) −20 ° C to 150 ° C
  • Focus system Unregulated focusing, minimum focusing distance – 22.8 cm
  • USB Mini USB for transferring images to a PC
  • Wifi Yes
  • Instant upload to Fluke Connect® Yes, it’s enough to establish a connection between the thermal imager. And the building’s Wi-Fi network. The captured images will be automatically transferred to the Fluke Connect® system or to a local server for storage or viewing on a PC (802.11 b / g / n [2.4 GHz])

    Image quality

  • IR-Fusion Technology Yes, adds details from the visible image to the infrared AutoBlend Mode Permanent combination in the range from 0 to 100%
  • PTi120 has Touch screen 3.5 inches (horizontal), 320 × 240 LCD
  • Robust ergonomic design Yes
  • Thermal Sensitivity (NETD) 60 mK
  • Frame frequency 9 Hz version

General specifications

  • Color alarm (temperature alarm) High temperature, low temperature, isotherms (within the measuring range)
  • PTi120 has Infrared Spectral Range from 8 to 14 microns (long wave)
  • Working temperature −10 ° C to +50 ° C (14 ° F to 122 ° F)
  • Storage temperature −40 ° C to +70 ° C (−40 ° F to 158 ° F)
  • Relative humidity 95% non-condensing
  • Center temperature measurement Yes
  • Spot temperature Hot and Cold Markers
  • Security EN 61010-1: Uncategorized, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
  • Electromagnetic compatibility EN301 489-1 V2.1.1 EN301489-17 V3.1.1
  • US Federal Communications Commission Compliance CFR Part 15 Subpart C
  • PTi120 comes with Vibration and shock resistance 2G, IEC 68-2-6 and 25G, IEC 68-2-29
  • Resistance to falling from height 1m
  • Dimensions (H × W × D) 8.9 × 12.7 × 2.5 cm
    (3.5 × 5.0 × 1.0 in.)
  • Weight (with battery) 0.233 kg (0.514 lbs)
  • Degree of protection of the case IP54
  • Warranty Two years
Nom. number 9000558079
Manufacturer Fluke
A type base
The maximum measured temperature, With 150
Display Resolution, px 120×90
Series fluke pti
State registry not
Weight, g 233

Above all yo can buy the PTi120 now.
