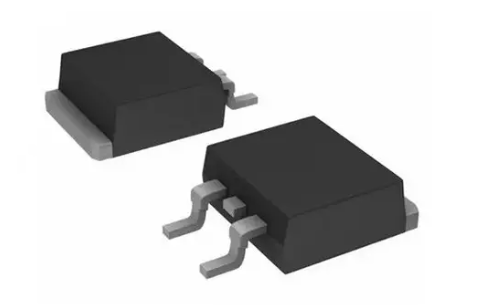

SCHOTTKY Diode is an original electronic component. Designed for high reliability and performance. It is a diode that uses a metal-semiconductor junction to produce low forward voltage drop and fast switching speed.

The maximum power dissipation for this particular diode is 30 watts. This means it can handle high power without overheating or malfunctioning. It has a rated forward current of 3 amps and a maximum reverse voltage rating of 40 volts. Suitable for a wide range of applications.

The “FN” at the end of the part number indicates that the diode is package in Surface Mount Device (SMD) format. Available in a flat no-lead (FN) package. This type of package is often used in modern electronic designs where space is at a premium.

Overall, the Schottky diode 30WQ04FN is a reliable high performance component. Can be use in various applications. Examples include power supplies, voltage regulators, and switch-mode power supplies.

Schottky diode 30WQ04FN Feature

• Low Forward Voltage Drop: The metal-semiconductor junction used in this diode results in a forward voltage drop. This is lower than conventional diodes. This allows for higher efficiency and less power loss in applications.
• Fast switching speed: SCHOTTKY diodes have a fast switching speed due to their low capacitance and low forward voltage drop. This makes them ideal for applications that require fast response times.
• High power handling capability: The 30WQ04FN is rate for a maximum power dissipation of 30 watts. Suitable for high power applications.
• Surface-mount package: The “FN” at the end of the part number indicates that the diode is package in Surface Mount Device (SMD) format. Available in a flat no-lead (FN) package. This type of package is commonly used in modern electronic designs where space is at a premium.
• Wide range of applications: 30WQ04FN is suitable for a variety of applications. Includes power supplies, voltage regulators and switch mode power supplies.

FAQ

Q: What is a SCHOTTKY diode?

A: Compared to standard p-n junction diodes. A Schottky diode is a type of diode that has a lower forward voltage drop and faster switching speed. It is make of metal-semiconductor junctions. Lower resistance and faster switching speeds are available.

Q: What is the maximum power rating of the 30WQ04FN SCHOTTKY diode?

A: The maximum power rating of the 30WQ04FN SCHOTTKY diode is 30 watts.

Q: What is the maximum forward current of the 30WQ04FN SCHOTTKY diode?

A: The maximum forward current of the 30WQ04FN SCHOTTKY diode is 30 amperes.

Q: What is the maximum reverse voltage of the diode?

A: The maximum reverse voltage of the 30WQ04FN SCHOTTKY diode is 40 volts.

Q: What is the operating temperature range of the diode?

A: The operating temperature range of the 30WQ04FN SCHOTTKY diode is -55°C to +150°C.
