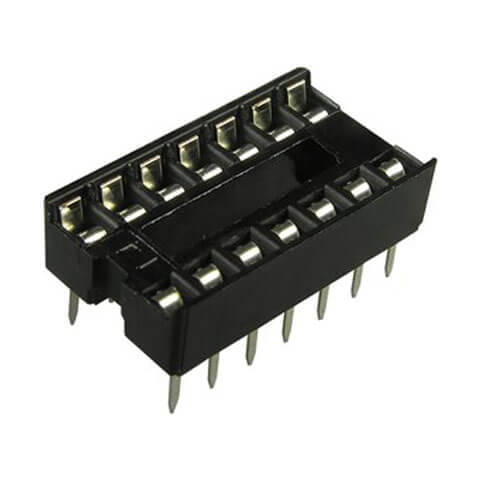

SCS-14 (DS1009-14AN)
DIP panel of 14 contacts narrow
- Series: sd
- Number of contacts: 14
- Contact Step: 2.54
- Insulator material: thermoplastic polystyrene
- Insulator resistance not less, MΩ: 1000
- Contact Material: phosphorus bronze
- Contact plating: tin
- Contact Resistance, Ohm: 0.02
- Current limit, A: 1
- Maximum voltage not less, V: 1000 in alternating current for 1 min
- Mounting method: soldering into holes
- Working temperature ° C: -55 ... 105
- Weight g: 0.9
Inquire Now
Description
Why SCS-14 (DS1009-14AN) and why to purchase from Megatronika? Because we are well known trusted product dealers. Therefore we can provide you the best quality in most affordable price.
- Because Chip panel is narrow
- Contacts: phosphor bronze
- Insulator: PBT UL94V-0
Characteristics
Technical
- Connector Type Die
- Step 2.54x7.62mm
- Mounting DIP
Electrically
- Contact resistance 20 mW
- Insulation resistance 1000Mom
- Withstand voltage 1000V
- limiting current 1A
Operating
- Operating temperature -55 ~ + 105 ° C
General
- Contact 14sht
Nom. number | 25272 |
Manufacturer | Ningbo connfly electronic (Zhenqin) |
Series | scl |
Number of contacts | 14 |
Contact Step | 2.54 |
Insulator material | thermoplastic polystyrene |
Insulator resistance not less, MΩ | 1000 |
Contact Material | phosphorus bronze |
Contact plating | tin |
Contact Resistance, Ohm | 0.02 |
Current limit, A | 1 |
Maximum voltage not less, V | 1000 in alternating current for 1 min |
Mounting method | soldering into holes |
Working temperature ° C | -55 ... 105 |
Weight g | 0.9 |
