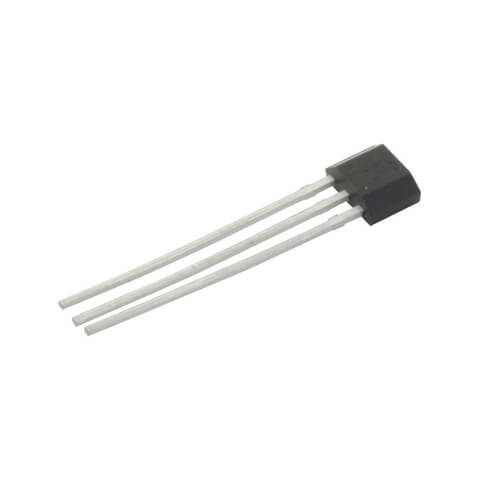

SS41
Hall sensor
-
- Type of output: digital with ok
- Sensor Type: hall element
- The presence of a built-in magnet: not
- Field Sensitivity Type: bipolar
- Min supply voltage, V: 4.5
- Max supply voltage, V: 24
- Max output current, mA: 20
Hall Sensor bipolar digital 150G TO92
Inquire Now
Description
Overview of SS41.
The SS41 is a Hall effect bipolar sensor for responding to changing magnetic poles. The built-in stabilizer ensures reliable operation in the power range from 4.5 to 24V DC, and the internal circuit prevents damage to the sensor in the event of a change in the polarity of the supply voltage. SS41 sensors are small, versatile, and digital Hall-effect devices that operate from a magnetic field from a permanent magnet or electromagnet. Open collector output voltage works great with a wide range of electronic circuits.
- Small size (0.16 x 0.12 “).
- Reverse polarity protection.
- Current collector output.
- Sensitive magnetic characteristics.
- Operating frequency from 0 kHz to 100 kHz.
| Nom. number | 50998 |
| Type of output | digital with ok |
| Sensor Type | hall element |
| The presence of a built-in magnet | not |
| Field Sensitivity Type | bipolar |
| Induction on, Gauss | 40 |
| Induction off, Gauss | -40 |
| Max working frequency, kHz | 100 |
| Min supply voltage, V | 4.5 |
| Max supply voltage, V | 20 |
| Max output current, mA | 20 |
| Temperature range, gr. from | -55 … 150 |
| Body | sr41 |
| Weight g | 0.12 |
| Manufacturer | Honeywell |
