Using The PIC16F688-I/SL Microcontroller

Microchip PIC16F688-I/SL PIC16F688-I/SL is a Microchip 8-bit microcontroller. This MCU provides up to 20MHz clock speed and 12 I/O pins. It has 7KB program memory, 256B data ram, and can operate with 2V to 5V supply voltage. specs PIC16F688-I/SL Product attribute: Attribute value: Select attribute Manufacturer: Microchip Product Category: 8-bit Microcontrollers – MCUs RoHS: Details Series: […]


Inquire Now

Description

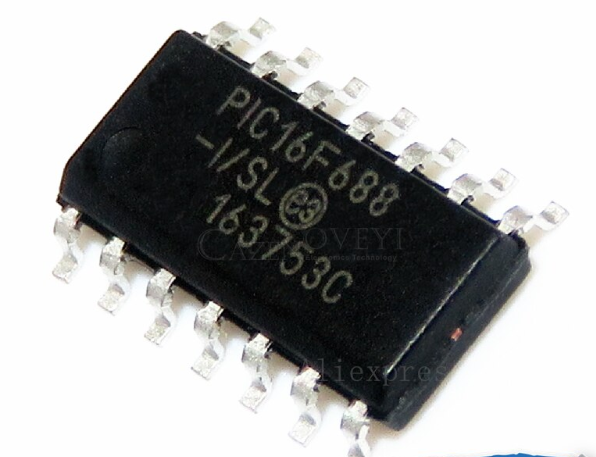

Microchip PIC16F688-I/SL

PIC16F688-I/SL is a Microchip 8-bit microcontroller. This MCU provides up to 20MHz clock speed and 12 I/O pins. It has 7KB program memory, 256B data ram, and can operate with 2V to 5V supply voltage.

specs

PIC16F688-I/SL Product attribute: Attribute value: Select attribute

Manufacturer: Microchip

Product Category: 8-bit Microcontrollers – MCUs

RoHS: Details

Series: PIC16F688

Mounting Style: SMD/SMT

Package/Case: SOIC-14

Core: PIC16

Program memory size: 7 kB

Data bus width: 8 bits

ADC resolution: 10 bit

Maximum clock frequency: 20 MHz

Number of I/O: 12 I/O

Data RAM Size: 256 B

Supply voltage – Min.: 2 V

Supply voltage – Max: 5.5 V

Minimum operating temperature: – 40 C

Maximum operating temperature: + 85 C

Packaging: Tube

Brand: Microchip Technology / Atmel

Data RAM Type: RAM

Data ROM Size: 256 B

Data ROM Type: Flash

Height: 1.25mm

Interface Type: SCI, USART

Length: 8.65mm

Moisture Sensitive: Yes

Number of ADC channels: 8 channels

Number of timers/counters: 1 timer

Processor series: PIC16

Product: UCM

Product type: 8-bit Microcontrollers – MCUs

Program memory type: Flash

57

Subcategory: Microcontrollers – MCU

Trade name: PIC

Width: 3.9mm

Unit Weight: 0.011923 ounces
