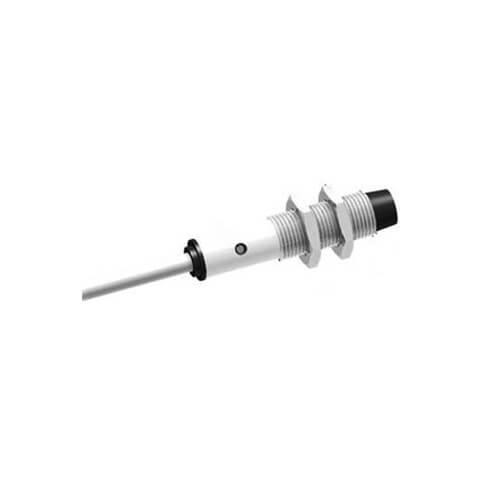

Inductive sensor

Inductive sensor, NPN, short-circuit, constant voltage.

Inquire Now


Detailed information about VB2.12M. Inductive sensor.

Nom. number 2965449037
Weight g 100
Manufacturer Mega-K
Connection diagram NPN closing
Reproducibility 5%
Hysteresis no more than 15%
Degree of protection IP67
Operating temperature range from -25 to +70  o C
Switching element utilization category DC13
Load capacity no more than 0.22 μF
Supply voltage ripple no more than 10%
Mounting method not flush-mounted
Sensing distance (Sn) 4 mm
Guaranteed operating interval (Sa) 0 … 3.2 mm
Supply voltage 10 … 30 V
Maximum load current 300 mA
Voltage drop no more than 1.5 V
Response frequency maximum 600 Hz
Power consumption no more than 8.0 / 25.0 mA
Operation indicator there is
Load short circuit protection there is
Reverse polarity voltage protection there is
Connection method cable 3×0.35 mm 2
Clorpus material brass
Weight no more than 100 g
