VS-30ETH06-M3
VS-30ETH06-M3 is a fast recovery diode made of a Schottky barrier construction. It is designed to handle high voltage and high current applications.
Inquire Now
Description

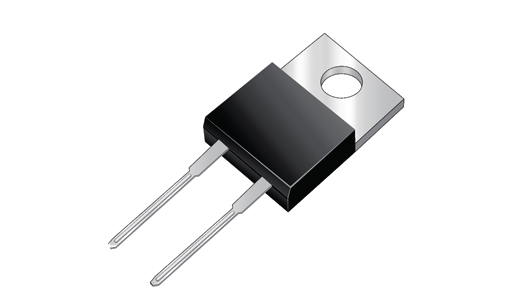

The VS-30ETH06-M3 is a 600V 30A TO-220 Fred Pt rectifier. It is an electronic device used to convert alternating current (AC) to direct current (DC). They are commonly used in power supplies, battery chargers. and other electronic devices that require a regulated DC voltage.
The VS-30ETH06-M3 is a rectifier designed to handle high voltage and high current applications. The TO-220 package is a popular package type for power devices. Because it offers a good balance between thermal performance and ease of installation.
The “Fred Pt” Fred Pt stands for “Fast Recovery Epitaxial Diode with Positive Temperature Coefficient”. Refers to the type of diode used in the rectifier. This type of diode has a fast recovery time. This means it can switch quickly between conducting and non-conducting states. Furthermore, it has a positive temperature coefficient. This means its resistance increases with temperature. This makes it less likely to overheat under high current conditions.
Overall,The VS-30ETH06-M3 can switch high voltage and high current with fast switching and low thermal resistance.
VS-30ETH06-M3 Feature
- High voltage rating: The rectifier can handle voltages up to 600 volts. making it suitable for high pressure applications.
- High current rating: This rectifier is capable of handling up to 30 amps. This makes it suitable for high power applications.
- Fast recovery time: Fred Pt diodes used in rectifiers have fast recovery times. This enables fast switching and reduces the risk of voltage spikes.
- Low forward voltage drop: A rectifier has a relatively low forward voltage drop, which means it wastes less energy. It also generates less heat.
- Positive temperature coefficient: Fred Pt diodes have a positive temperature coefficient. This means its resistance increases with temperature. This helps to protect the diode from overheating under high current conditions.
- TO-220 package: The TO-220 package is a popular package type for power devices. Because it offers a good balance between thermal performance and ease of installation.
FAQ
Q: What are rectifiers?
A: Rectifiers are electronic devices used to convert alternating current (AC) to direct current (DC).
Q: What does “600V 30A” mean in the context of rectifiers?
A:”600V” refers to the maximum voltage that the rectifier can withstand. And “30A” refers to the maximum current that the rectifier can withstand.
Q: What is a TO-220 package?
A: TO-220 is a packaging form of electronic components. Commonly used in power devices such as rectifiers. It has a rectangular shape with a metal tab that is use for heat dissipation.
Q: What is a Fred Pt rectifier?
A: Fred Pt is a rectifier. Stands for “fast recovery epitaxial diode with positive temperature coefficient”. It is design for fast recovery time and high temperature stability. making it suitable for high power applications.
Q: What are some common applications for 600V 30A TO-220 Fred Pt rectifiers?
A: 600V 30A TO-220 Fred Pt rectifiers are commonly used in power supplies, motor control circuits. And other high power applications that require efficient and reliable rectification of AC power.
